| Place of Origin: | Japan |
| Brand Name: | JUKI |
| Certification: | CE |
| Model Number: | FX-2 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden box |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000set/months |
| Brand: | Juki Machine | Laser Heads: | 2 Multi |
|---|---|---|---|
| Quality: | Good Condition | Component Size: | 0402 |
| Shipping Terms: | Air Or Sea | Delivery Time: | 1-3 Days |
| Packaging: | Wooden Case | Other Services: | Repair |
| High Light: | JUKI FX-2,SMT Surface Mount Technology Machine,FX-2 Surface Mount Technology Machine |
||

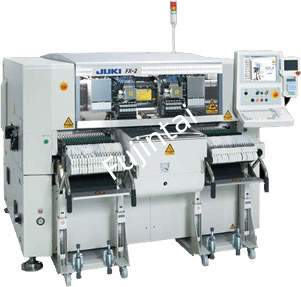

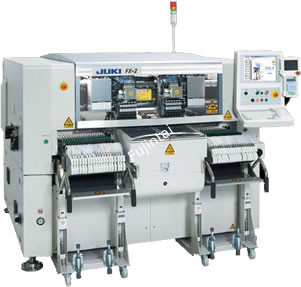

High Performance SMT Placement Machine High Speed Modular Mounter FX-2
Description:
Surface mount technology, SMT and its associated surface mount devices, SMDs considerably speed up PCB assembly as the components simply mount on the board.
Look inside any piece of commercially made electronic equipment these days and it is filled with minute devices. Rather than using traditional components with wire leads like those that may be used for home construction and kits, these components are mounted onto the surface of the boards and many are minute in size.
This technology is known as Surface Mount Technology, SMT and SMT components. Virtually all today's equipment that is manufactured commercially uses surface mount technology, SMT, because it offers significant advantages during PCB manufacture, and in view of the size the use of SMT components enables far more electronics to be packed into a much smaller space.
An SMT component is usually smaller than its through-hole counterpart because it has either smaller leads or no leads at all. It may have short pins or leads of various styles, flat contacts, a matrix of solder balls, or terminations on the body of the component.
Specifications:
| Board size | L size (410x360mm) | ||
| Component height | 6mm | ||
| Component size | 0402 (01005)~□33.5mm | ||
| Placement speed (chip) | Chip | Optimum |
0.09Sec./chip (40,000CPH) |
| IPC9850 | 30,000CPH | ||
|
Placement accuracy (Laser recognition) |
±0.05mm(±3σ) | ||
| Feeder inputs | Max. 80 on 8mm T/F | ||
Features:
A high-speed modular mounter with production capacity increased by 20%.
※ Improved economical efficiency, reliability.
► 40,000CPH (Optimum) (0.09 sec/chip)-230,000CPH (IPC9850)
※ Two multi laser heads (12 nozzles).
► Component size: from 0402 (01005) to 33.5mm square
※ Compared with previous model type.
※ Actual throughput may various.
Company Profile:
Fujintai provides installation/ maintenance, business consulting and other services of Juki/ Fuji/ Yamaha/ Panasonic/ Dek/ Sony/ Siemens Mounter Spare Parts Equipments. Long-term supply of all kinds of card / feeder / laser / motor / camera / driver / nozzle / belt / plastic rail chain / power supply / trolley / tray / filter / gas spring / and other peripheral equipment accessories.
► Price advantage: With the reasonable discount, maximum profit to partner;
► Stocks: Full range smt equipment and accessories to meet your needs;
► Services: Professional services and complete after-sales system.
