Fujintai Technology Co., Ltd.
 |
| Place of Origin: | Japan |
| Brand Name: | JUKI |
| Model Number: | FX-1R |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden box |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10set/months |
| Brand: | Juki | Condition: | Original |
|---|---|---|---|
| Name: | Chip Shooter Machine | Feature: | Long Working Time |
| MOQ: | 1 Set | Payment Terms: | Pay In Advance |
| Delivery Time: | Within 3 Days After Payment | Packaging: | Wodern Case |
| High Light: | FX-1R SMT Placement Machine,JUKI SMT Machine,JUKI FX-1R |
||

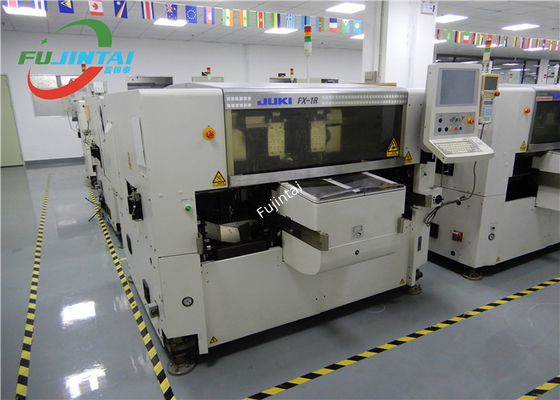

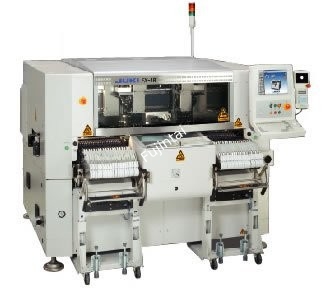

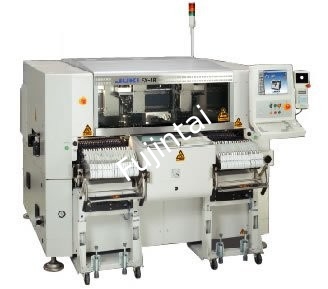

Durable JUKI Chip Shooter Machine FX-1R Good Condition Long Working Time
Description:
JUKI FX-1R is a traditional modular chip shooter driven at extreme speeds. Refinements in the driven system deliver real world improvements in actual throughput.
♦ Actual throughput may vary;
♦ Please download brochure for details.
Features:
Not only inherits the traditional concept of modular placement machine, and realize the high speed Mounter mount. Adjust the various parts, improves the actual mount speed.
♦ 33,000CPH: chip (optimum condition)/ 25,000CPH: chip (IPC 9850);
♦ Laser mounting head *2 (8 nozzles);
♦ 0603 (British 0201) chip-20mm square element or 26.5*11mm 0402 (British 01005) the chip is purchased at the factory.
Specifications:
| Substrate size | 410*360mm |
| Component height | 6mm |
| Component size | Laser recognition 0603 (British 0201) chip~20mm square element or 26.5*11mm |
| Element mounting speed | 33000CPH (optimum condition) |
| CPH | 25000cph (IPC9850) |
|
Component mounting accuracy |
±0.05mm |
| Component mount type | Up to 80 kinds of component placement |
| Voltage | Three-phase AC200~415V |
| Power rate | 3KVA |
| Air pressure | 0.5±0.05Mpa |
| PCB thickness | 0.2mm-6mm |
| Dimension | 1880×1731×1490mm |
| Weight | About 2000KG |
Applications:
♦ Manufacturing Department Production Workshop SMT Line.
♦ Proper operation of the fully automatic press ensures that the machine is operating properly, thus ensuring product quality.
♦ Solder Paste Printing Machine: Modern solder paste printing machine is generally composed of plates, tin paste, embossing, and transmission board. Its working principle is: firstly, the circuit board to be printed is fixed on the printing positioning table, and then the solder paste or the red glue is printed on the corresponding pad through the steel mesh by the front and rear scrapers of the printing machine, and the PCB which is uniformly printed is passed through. The transfer station is input to the placement machine for automatic placement.
