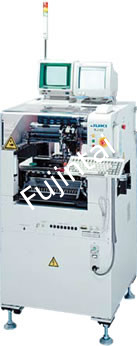

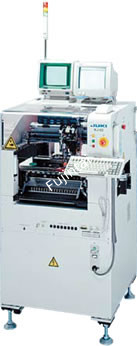

Easy Operate KJ-02 SMT Placement Machine with good condition

Easy Operate KJ-02 SMT Placement Machine with good condition

  • Easy Operate KJ-02 SMT Placement Machine with good condition
Easy Operate KJ-02 SMT Placement Machine with good condition
Product Details:
Place of Origin: Japan
Brand Name: JUKI
Model Number: KJ-02
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden box
Delivery Time: 3-7 days
Payment Terms: T/T, Western Union
Supply Ability: 1000set/months
Contact Now
Detailed Product Description
Brand: Juki Used: Good Condition
Vision Recognition: 3mm~□24mm( □50mm*1 ) Feeder Inputs Max: 40 On 8mm T/F*2
Packing: Wooden Case Payment Terms: Pay In Advance
Shipping Terms: Air Or Sea Delivery Time: 1-3 Days
Supply Ability: 10 Sets Other Services: Repair Available
High Light:

KJ-02 SMT Placement Machine

,

JUKI SMT Placement Machine

,

JUKI Surface Mount Machine

Second Hand SMT Machine JUKI KJ-02 Flex Chip With Good Condition

Description:
High-precision compact mounter that can be used flexibly for prototyping, variety and variable quantity production. It has a compact body with a height of 1.3m and saves installation space approx.

Features:
30% compared with previous models. It can be operated, moved and laid out easily. It has high placement precision equivalent to higher models, so it can place the latest components, such as 0603 chips.
■ 0.76 Sec. / Component: chip (laser centering/ optimal)
■ 2.00 Sec. / Component: IC (Vision centering/ optimal)
■ One laser alignment sensor (1 nozzles) plus One VCS (Vision Centering System) Camera
■ From 0603 (0201) to 50mm square components
※ Actual throughput may vary.


Specifications:

Board size Max 203.2×152.4mm
Min 50×30mm
Component size Laser recognition

0603 (0201)~□20mm or 23.5×11mm

Vision recognition

□3mm~□24mm
(□50mm*1)

Placement speed Laser recognition

0.76 sec./ component
(optimum condition)

Vision recognition

2 sec./ component
(optimum condition)

Placement accuracy Laser recognition ±0.05mm
Vision recognition ±0.04mm
Feed inputs Max. 40 on 8mm T/F*2

Note: 1. When using large VCS camera.
               2. 20 on 8mm T/F if the size of board is 330(X) mm x 250(Y) mm.
